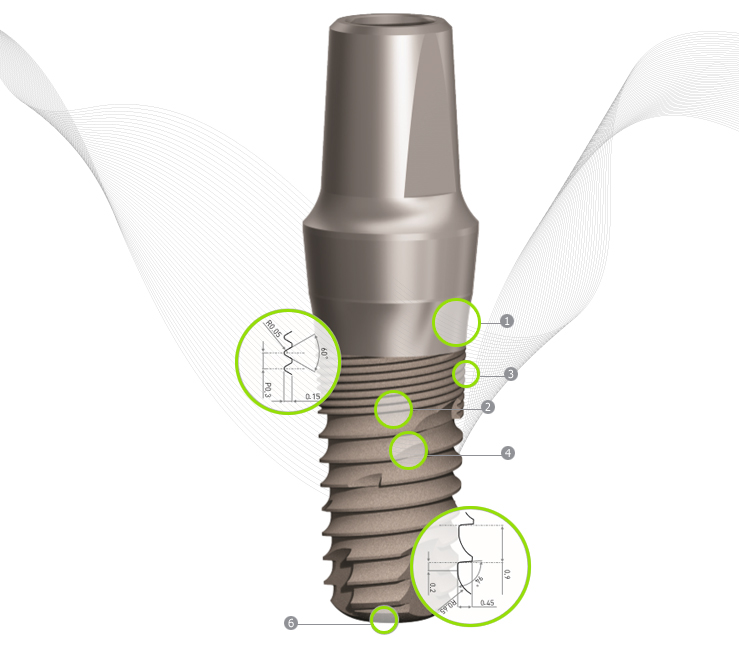

➊ Smooth Collar
Enabling one stage surgical procedure
Built in soft tissue management
Simple handling of prosthetics and high accessibility of connection at tissue level
|
➋ Internal Octagon Connection
8˚ tapered and octagon connection
Hermetic sealing with no micro gap and move |
 |
➌ Optimal Fit Thread
Synchronized optimal fit thread prevents cortex absorption by distribution of bone stress
Higher initial stability by maximizing optimal sealing between cortical bone and fixture
|

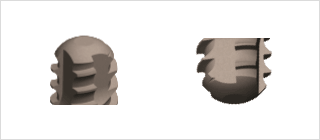

➍Safe Cutting Edge
Reduction of bone stress allowing smoother insertion |
➎ Self Tapping Groove
Self tapping induction with a boosted up drilling capability
Allow space for bone chip boosting fixation strength |
 |
 |

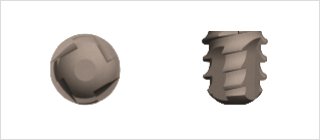

➐ Dome End
Less perforation possibility
Tapered Body
Tapered body condense bone gradually
Improved initial stability
Optimum RBM surface
Optimised 1.3-1.8㎛ of roughness
43% enhanced magnification than smooth surface

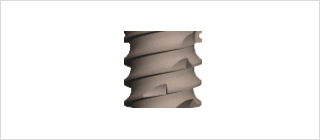

Double Thread Design
Faster insertion may reduces chair time

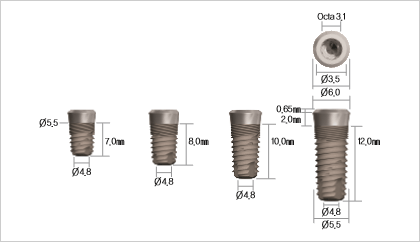

For Wide Extraction Socket
Designed for wider extraction socket
For Recovering of failed implant
| SAVE
