| Tapered
➊ Smooth Collar
Enabling one stage surgical procedure
Built in soft tissue management
Simple handling of prosthetics and high accessibility of connection at tissue level
➋ Internal Octagon Connection
8˚ tapered and octagon connection
Hermetic sealing with no micro gap and move
➌ Optimal Fit Thread
Synchronized optimal fit thread prevents cortex absorption by distribution of bone stress
Higher initial stability by maximizing optimal sealing between cortical bone and fixture

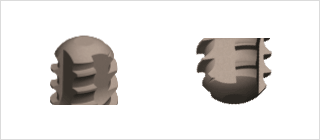

➍ Safe Cutting Edge
Reduction of bone stress allowing smoother insertion

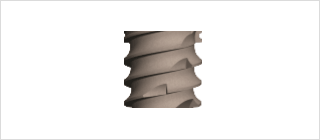

➎ Self Tapping Groove
Self tapping induction with a boosted up drilling capability
Allow space for bone chip boosting fixation strength
➏ Dome End
Less perforation possibility
Tapered Design
Tapered body condense bone gradually
Improved initial stability
Optimum RBM surface
Optimised 1.3-1.8㎛ of roughness
43% enhanced magnification than smooth surface
Double Thread Design
Faster insertion may reduces chair time

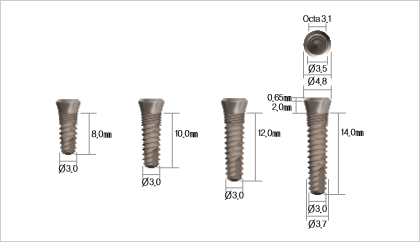

Mini
※ Set Code(S) : Fixture + Cover Screw (DICS1)
Regular

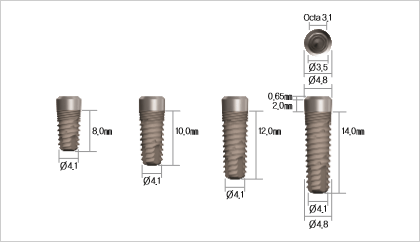

Wide
| Tapered
