s-Clean | Regular

  • Regular
  • System
s-clean-Regular-1

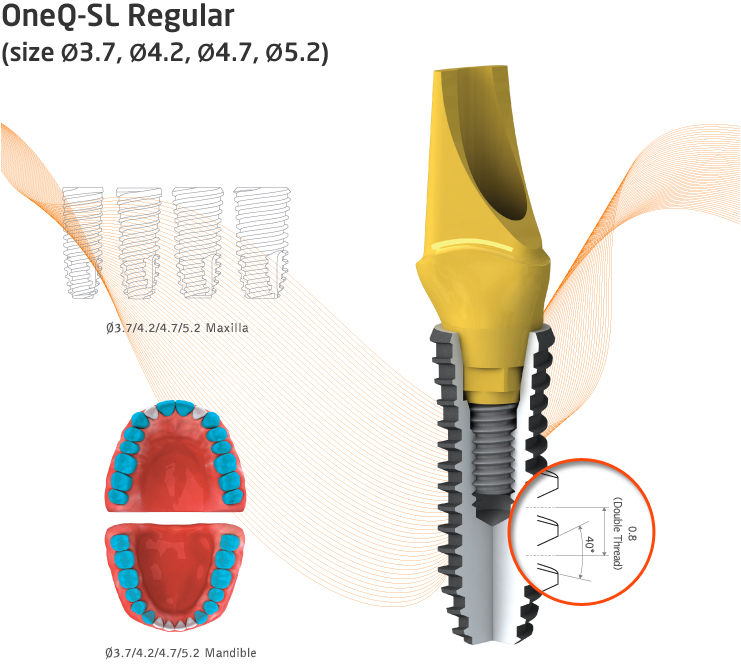

Designed for all indication



採用Double tapered的這項設計，可以更容易的控制深度


錐形頭部便於凝結骨骼，即使在受損骨骼中，也能有效改善根基強度
s-clean-Regular-2

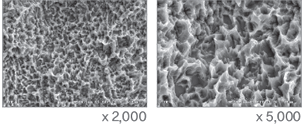

S.L.A. Surface



S.L.A. 與RBM相較之下，其表面粗糙度增加了200%以上


從而提升更加高效和快速的骨整合







Sealing with Hex connection



11º的錐形六角能夠緊密鎖緊內部， 防止生成微小間隙和微動的發生







Fluent soft tissue volume


適用平台轉換設計



通過形成和附著豐富的軟組織，為改善植牙安全性而重新進行了設計
s-clean-Regular-4





Improved stability



Apex的Cutting edge增大了切削力


幫助進行self tapping以及實現盡可能少的骨切除，整個設計側重安全性




s-clean-Regular-5

Regular Line Material : Pure-Ti Grade 4

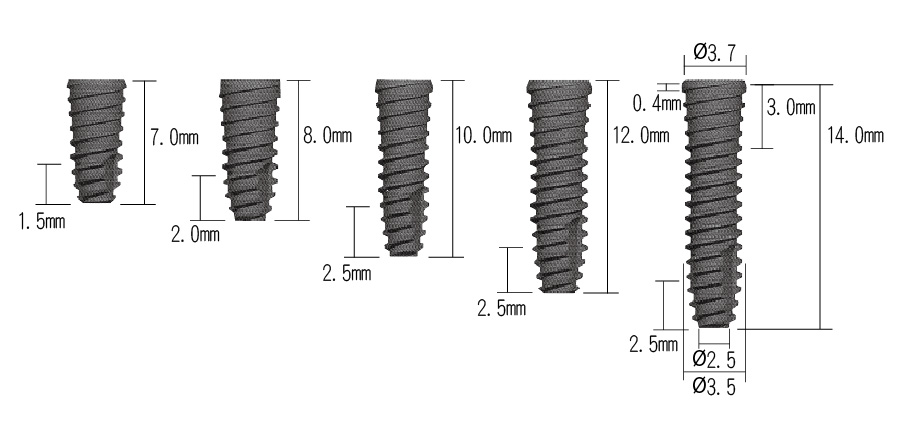

Fixture Diameter
Length
Code No.
Ø3.7
7.0mm
DSSOFM3707S
8.0mm
DSSOFM3708S
10.0mm
DSSOFM3710S
12.0mm
DSSOFM3712S
14.0mm
DSSOFM3714S



※Set Code(S) : Fixture + Cover Screw



Fixture Diameter
Length
Code No.
Ø4.2
7.0mm
DSSOFR4207S
8.0mm
DSSOFR4208S
10.0mm
DSSOFR4210S
12.0mm
DSSOFR4212S
14.0mm
DSSOFR4214S



※Set Code(S) : Fixture + Cover Screw



Fixture Diameter
Length
Code No.
Ø4.7
7.0mm
DSSOFR4707S
8.0mm
DSSOFR4708S
10.0mm
DSSOFR4710S
12.0mm
DSSOFR4712S
14.0mm
DSSOFR42714S



※Set Code(S) : Fixture + Cover Screw



Fixture Diameter
Length
Code No.
Ø5.2
7.0mm
DSSOFR5207S
8.0mm
DSSOFR5208S
10.0mm
DSSOFR5210S
12.0mm
DSSOFR5212S
14.0mm
DSSOFR5214S



※Set Code(S) : Fixture + Cover Screw
